GFCIs receptacles cannot be switched, nor can they be split. Best bet is to use a GFCI breaker in the panel, then you can use regular receptacles that you can split and switch, and everything will be protected.

How do you wire a GFCI light switch?

To do this, simply connect the upper wire (there are two builtin wires on the back side of GFCI) to the line terminal of GFCI while the second wire should be wired to the incoming line (phase, live or hot) wire. Connect the ground / earth terminal to the ground wire from the main board.

How do you wire a switch and a receptacle in the same box?

Connecting Separate Devices in a Double-Gang Box The same three options exist when wiring separate devices. To have the switch control just the outlet, connect the hot circuit wire to one of the switch terminals, and then connect the other switch terminal to the brass terminal on the outlet with a short jumper wire.

Can you wire GFCI half hot?

You cannot make a GFCI a half hot outlet. You can switch the entire outlet, but it may result in tripping the GFCI occasionally. Probably not, but it could. It will also switch any and all outlets downstream from the GFCI that depend on the GFCI for protection.

Can you run a GFCI off a light switch?

In general, yes. GFCI outlets have LINE and LOAD terminals. You can connect several more outlets on the LOAD terminals, and they will also be protected from ground faults. You can also add a switch, though bear in mind that highly inductive loads (like a large motor) can cause nuisance tripping of the GFCI.

Can a light switch be turned into an outlet?

Yes, a switch can be converted into an outlet if the wiring can be identified back at the source and one of the wires (the neutral or white) can be connected to the neutral source. Be very careful to note the existing wiring configurations before anything is changed.

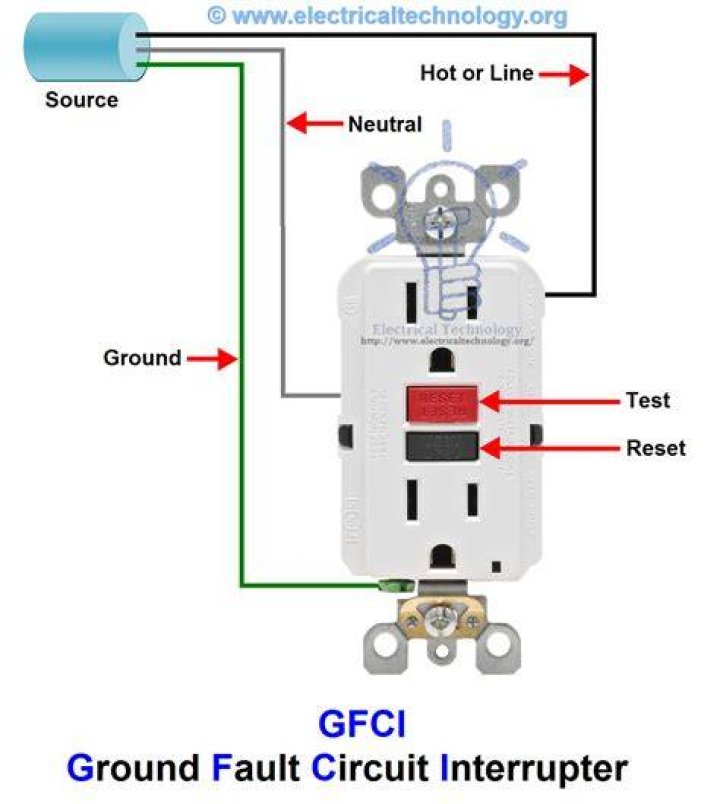

How do you wire a GFCI outlet?

Procedure to install a GFCI in a existing box with 2 cables (4-6 wires). 1) Turn off power. 2) Remove outlet from box while keeping the wires attached to the outlet. 3) Detach one cable’s white wire and black wire from the outlet. Cap off each removed wire separately with a wire nut.

Can two GFCI outlets be on the same circuit?

Anyway, it’s okay to put two GFCIs on the same circuit. The way to do this is to not to use the “load” side of the first GFCI when running the wire to the new GFCI. Just pigtail both the incoming and outgoing wires to the “line” side.

What is GFCI and how it works?

The GFCI type of outlet constantly monitors electricity flowing in a circuit, to sense any loss of current.

How does a GFCI outlet work?

When you plug in an appliance, such as a hair dryer, the GFCI outlet monitors the amount of power going to the device. If you accidentally drop the appliance into sink full of water, the GFCI detects the interruption in current and cuts the power and possibly saves your life.
