This means that a value must be loaded from memory into a register, then written back to memory. There are no direct memory to memory copies….Simple Assignment.

What is LC 3 instruction?

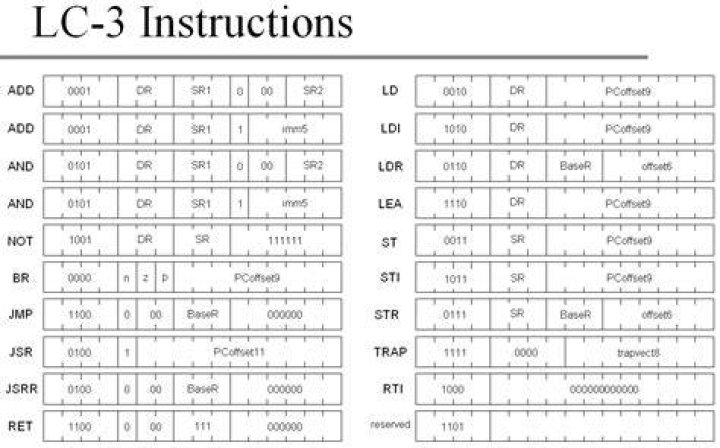

The LC-3 instruction set implements fifteen types of instructions, with a sixteenth opcode reserved for later use. The architecture is a load-store architecture; values in memory must be brought into the register file before they can be operated upon.

What does halt do in LC3?

HALT tells the simulator to stop a program that is running. .

What is fill in lc3?

FILL tells the assembler to set aside the next location in the program and initial- ize it with the value of the operand. In line 15, the ninth location in the resultant LC-3b program is initialized to the value x0006.

What does JSR do in assembly?

JSR is an assembly language instruction that stands for “jump to subroutine.” It permits the program to re-use a section of code (subroutine) by branching operation to that section of code, and later return to the main program flow.

What is sext in LC3?

SEXT(immediate): sign-extend immediate to 16 bits. ZEXT(immediate): zero-extend immediate to 16 bits. Page 2 has an ASCII character table.

Is LC3 a RISC?

The here mentioned LC3 controller has been designed using the newer RISC design strategy. This controller has used Non-pipelined methodology for design, and therefore the chance of getting an error due to non-availability of previous values is forestalled. The memory operations performed is Load Effective address.

How to spell in LC3 Assembly?

Unlike most languages, LC3 assembly is a case insensitive language. You can “spell” things in upper case, lower case, or mixed case. You may use different “spellings” in different places, but all refer to the same thing. For example, blah, BLAH, Blah, BlaH are all identical.

What is a pointer in LC3?

A pointer is a variable whose contents is the address of something else. This is most commonly another variable, but it may be the address of an instruction. Since a variable in LC3 is 16 bits, a pointer can access any location in the LC3’s memory. C code LC3 code pa = &a

What are the condition codes in LC-3?

Condition Codes LC-3 has three condition code registers: N — negative Z — zero P — positive (greater than zero) Set by any instruction that writes a value to a register (ADD, AND, NOT, LD, LDR, LDI, LEA) Exactly one will be set at all times Based on the last instruction that altered a register

What is offset of in LC3 Assembly?

In fact, C has a construct offsetof()that is used to compute the address of a field within a structure. In LC3 assembly, you must compute the offsets yourself (or write your own compiler 🙁 ). The LDR/STRinstructions are also important in accessing method parameters and local variables. This is done using offset from the frame pointer. Conditionals
