Former Bike Wrench You will need 20 (10 per side) 3/16″ bearings for the front hub and 18 (9 per side) 1/4″ bearings for the rear.

How many bearings does a freewheel hub have?

Are you really replacing bearings in the freewheel itself, or in the hub to which the freewheel is attached? If it really is the freewheel says “You also will need about 100 1/8″ bearing balls for most freewheels”.

How many ball bearings are in the front hub?

10 balls
Hub Assembly Place ball bearings in both cups and cover with more grease. Make sure balls are seated flat in cup. For rear hubs, the common number is 9 balls of 1/4-inch diameter per side. For front hubs, the common number is 10 balls of 3/16-inch diameter per side.

Can you disassemble a freewheel?

Disassembly. Leave the freewheel in place on the wheel, or screw it onto a wheel, so that you will have something to hold it with. Breaking the freewheel loose from the wheel now with a freewheel remover reduces the likelihood of damage to the inner body if you have to remove it for reassembly.

Which way do you turn a freewheel to loosen?

Turn remover only 1 full revolution counter-clockwise. Loosen and remove skewer before continuing to remove freewheel. Continue to turn remover counter-clockwise until freewheel is unthreaded from hub.

Should I service my freewheel bearing?

The freewheel bearing gets the least wear of any on a bicycle, since it only turns when it is not carrying any load. Some people will ignore my advice and try to service freewheels (or have no choice). Sheldon’s advice makes very good sense for Shimano Freehub bodies, because they are common, and easily replaced.

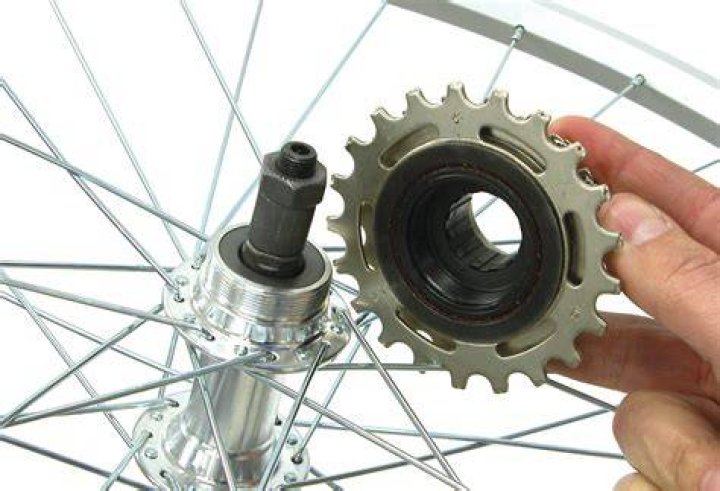

How do you attach a freewheel to a hub?

A standard freewheel attaches to a hub by screwing on to external threads that are part of the hub. Pedaling tightens the freewheel down on the threads, so no tools are required to install a freewheel. Sheldon recommends against rebuilding a freewheel or Freehub body.

What is the difference between a freewheel cluster and a hub?

Older multi-speed bicycles have simple rear hubs with a set of threads on the right side of the hub shell. A traditional freewheel cluster has matching threads which screw onto the hub.
